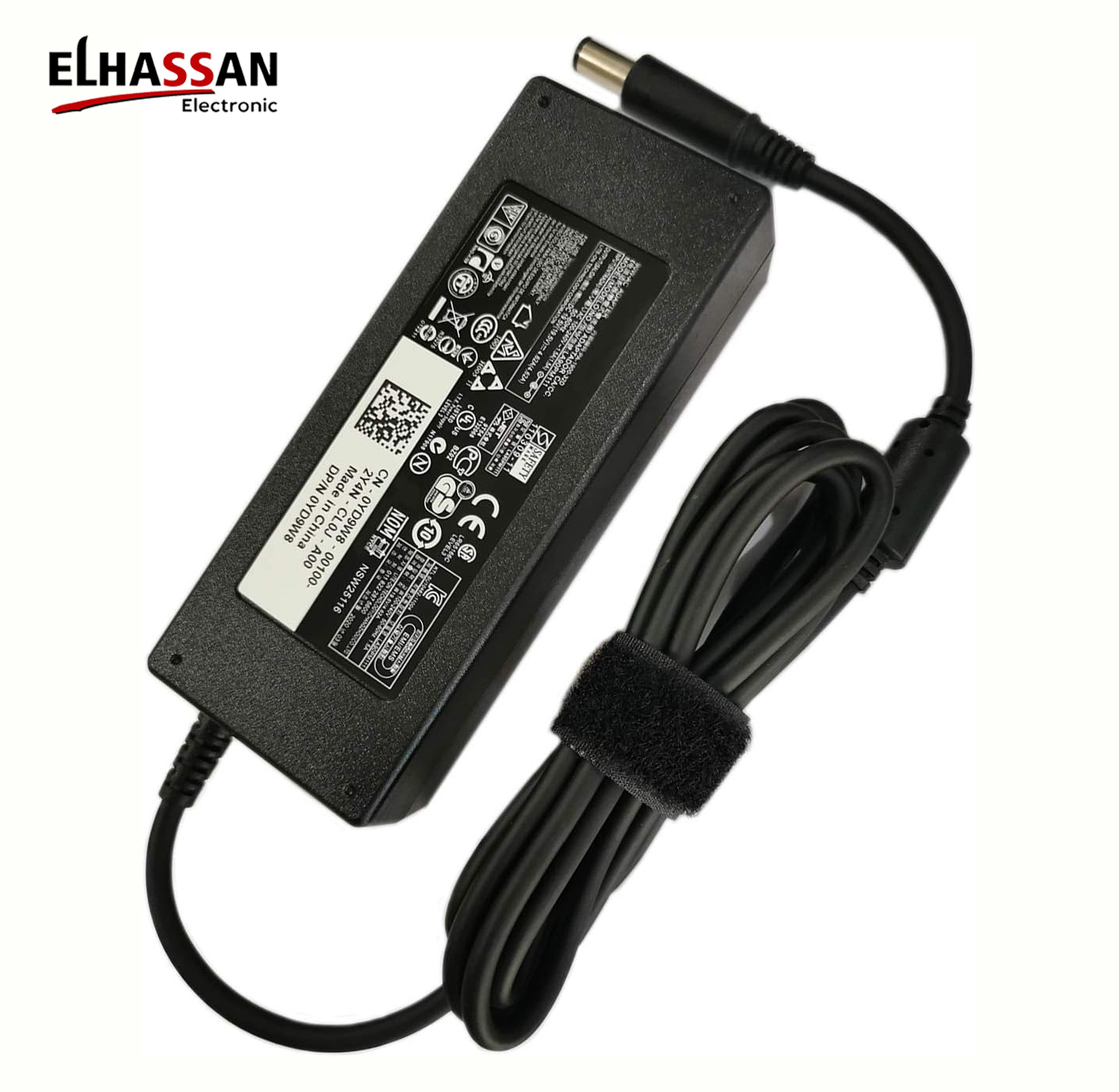

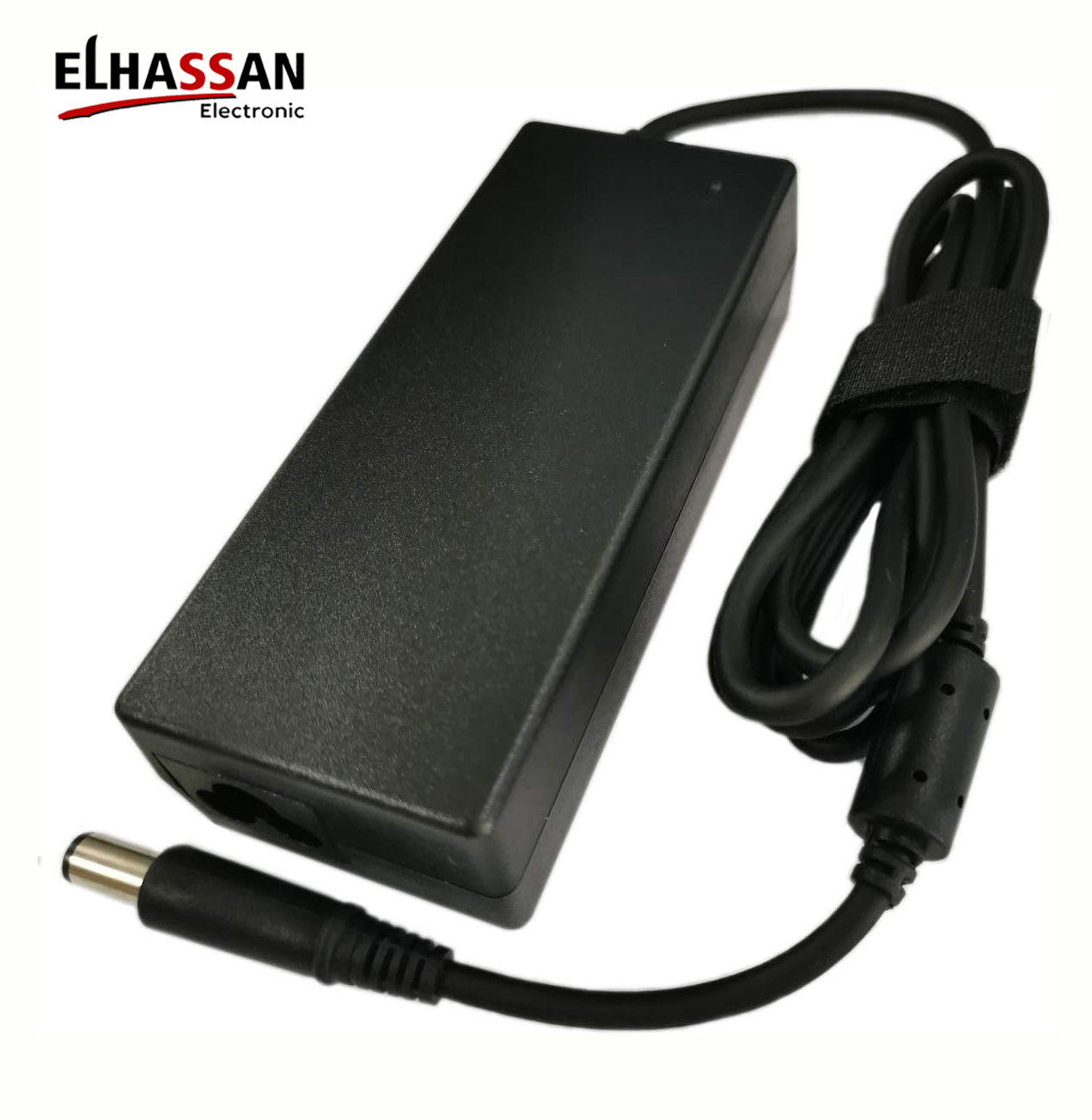

Dell 90W 19.5V 4.62A Small Barrel Tip (4.5mm x 3.0mm) Laptop AC Adapter Power Charger (LA90PM111)
The Dell LA90PM111 provides a highly stable and premium energy charging solution for keeping your high-performance business laptops, enterprise notebooks, and portable workstations running efficiently. Moreover, its advanced small barrel hardware architecture incorporates an internal central identification pin to guarantee precise energy delivery regulation. This professional enterprise-grade AC adapter replacement is an excellent choice for powering intensive office workloads, maintaining corporate computer fleets, and replacing worn-out charging bricks.
■ 90W Solid Output Power, Built-in Casing LED & Comprehensive Circuit Safeguards
- High-Capacity 90W Charging Engine: Delivers a robust continuous output of 19.5V and 4.62A to handle heavy system loads smoothly. Consequently, you can charge your hardware batteries rapidly while sustaining optimal computing performance even during complex multi-tasking sessions.
- Premium Micro Round Plug (4.5mm x 3.0mm): Features a durable straight 180° connector engineered with a small barrel tip and an integrated central smart pin. Therefore, the physical link anchors firmly into your laptop charging port to prevent accidental power drops or loose connection wearing over time.
- Functional LED Indicator & Circuit Protection: Built with a dedicated function-LED embedded right into the casing to verify active power transmission instantly. Furthermore, the internal layout includes comprehensive protection modules against sudden short-circuits, electric overloads, and high temperature peaks.
■ Technical Specifications
| Category | Specification Details |
|---|---|
| Brand & Part Number | Dell Compatible Component (Model: LA90PM111) |
| Sub-Part Numbers | FDV6P and equivalent alternative small-tip power modules |
| Voltage Output (Tension) | 19.5 Volts DC |
| Amperage & Total Power | 4.62 Ampere | 90.0 Watts Max Output (Backwards compatible with 65W models) |
| Universal Input Specs | 100-240V AC / 50-60Hz (Worldwide traveling configuration ready) |
| Connector Shape & Length | Small Round Barrel / 180° Straight Tip | Length: 9.0 mm |
| Plug Dimensions & Pin | Outer Diameter: 4.5 mm | Inner Diameter: 3.0 mm (approx. 2.9mm) | Central Identification Pin |
| Cable Length & Measures | ~1.75 Meters Attached DC Cord | Chassis Body (130 x 50 x 33 mm) |
| Safety Compliance Marks | CE, UL Listed, CCC, NOM NYCE, PSE, TÜV Approved Certifications | Level VI Efficiency |
Expert Tip by EL Hassan Electronic: Medium-to-high wattage business laptops require clean and uninterrupted current to keep hardware micro-components safe. Specifically, the Dell LA90PM111 architecture incorporates premium voltage filtering layouts to absorb sudden building electrical line variations safely. Please note that this item features the small 4.5mm barrel plug revision and is not compatible with older systems that strictly demand the larger 7.4mm outer connector format.
