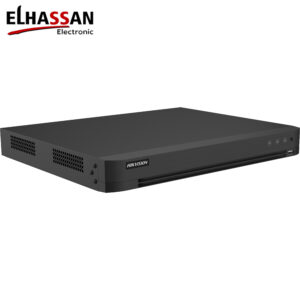

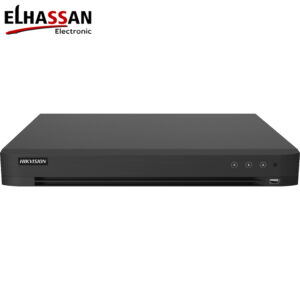

Hikvision 16-ch 5 MP 1U H.265 AcuSense DVR

Hikvision 16-ch 5 MP 1U H.265 AcuSense DVR

The iDS-7216HUHI-M2/XT is a high-end 16-channel DVR engineered with AcuSense technology for professional-grade security. It offers powerful AI analytics and supports high-resolution recording up to 8MP (4K), making it the perfect hub for advanced surveillance.

■ Professional AI & AcuSense

• Advanced Perimeter Protection: Up to 16-ch deep learning analysis for human and vehicle recognition.
• Facial Recognition: Supports 4-ch face picture comparison and capture with secure backup.
• Motion Detection 2.0: Enabled by default on all analog channels to eliminate false alarms from environmental factors.
• AcuSearch Technology: High-speed search capabilities across 16 channels for specific events.

■ High-Resolution & Storage

• 4K Encoding: Powerful encoding capability up to 8MP @ 8fps or 3K/5MP @ 12fps.
• Hybrid Scalability: Supports 16 analog channels + up to 16 additional IP channels (32-ch total).
• Dual SATA Storage: 2 SATA interfaces supporting up to 12 TB per disk (24 TB total).
• H.265 Pro+: Maximizes storage space and maintains ultra-clear video quality.

■ Technical Specifications

Model: iDS-7216HUHI-M2/XT

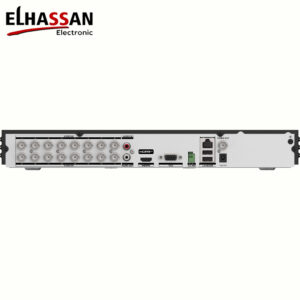

Video Output: HDMI (4K), VGA (1080p), and CVBS independent outputs.
Audio: Supports 16-ch audio via coaxial cable.
Network: Gigabit Ethernet (10/100/1000 Mbps).
Power: 12 VDC, 5 A (Consumption ≤ 60 W).
