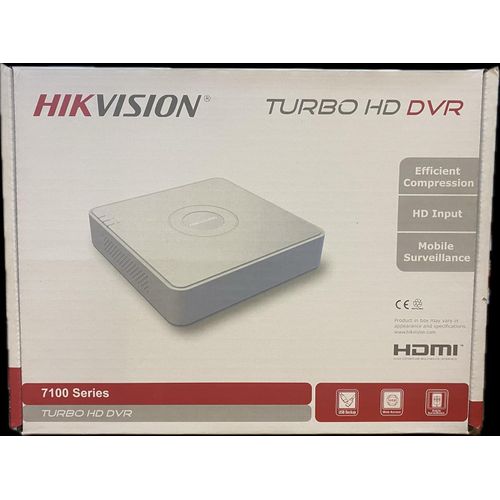

Marketing Name Hikvision Turbo HD DVR 7100 Series AcuSense DVR
Model Name iDS-7108HQHI-M1/S
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input 8-ch BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Video Input 2-ch (up to 10-ch) | Enhanced mode: 4-ch (up to 12-ch)
Maximum IP Resolution Up to 6 MP
Encoding Resolution 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF
Frame Rate 3K lite @ 12fps / 5 MP lite @ 12fps / 4 MP lite @ 15fps / 1080p @ 15fps
Audio Input 1-ch RCA & 8-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback 8-ch
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface 1 × SATA Interface (up to 10 TB capacity)
USB Interface 2 × USB 2.0 (Rear panel)
Smart Features Motion Detection 2.0 (Human/Vehicle Analysis), Facial Detection, Perimeter Protection
Power Consumption ≤ 12 W (without HDD)
Power Supply 12 VDC, 1.33 A
Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight ≤ 1 kg (2.2 lb. without HDD)
