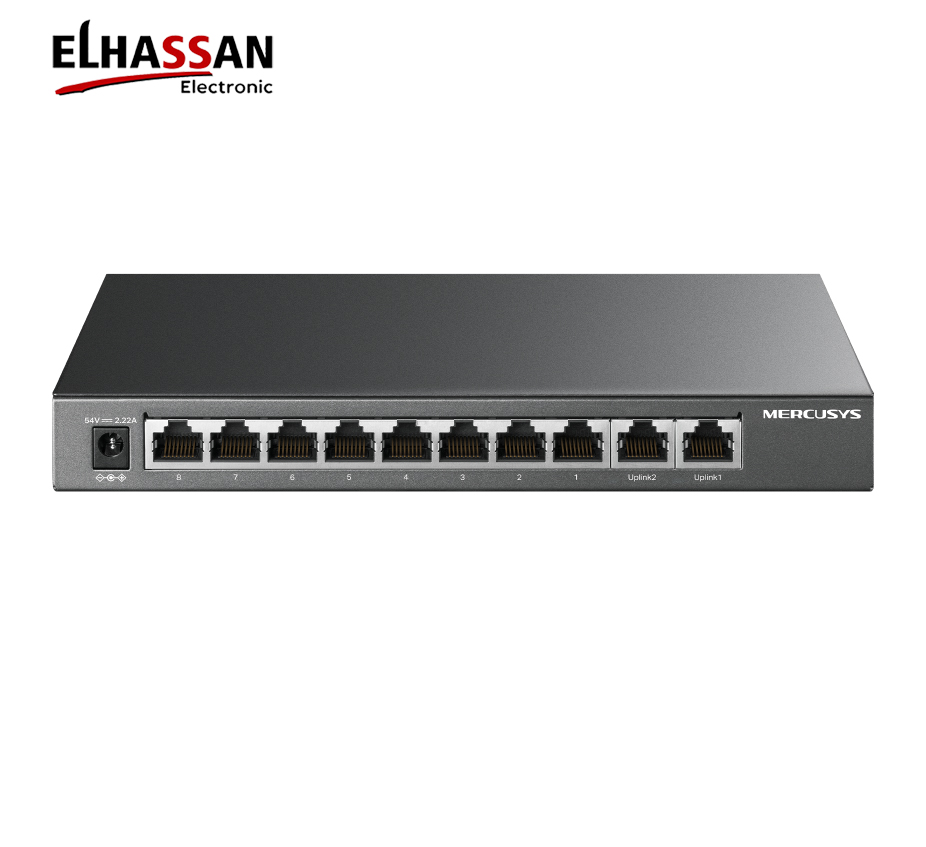

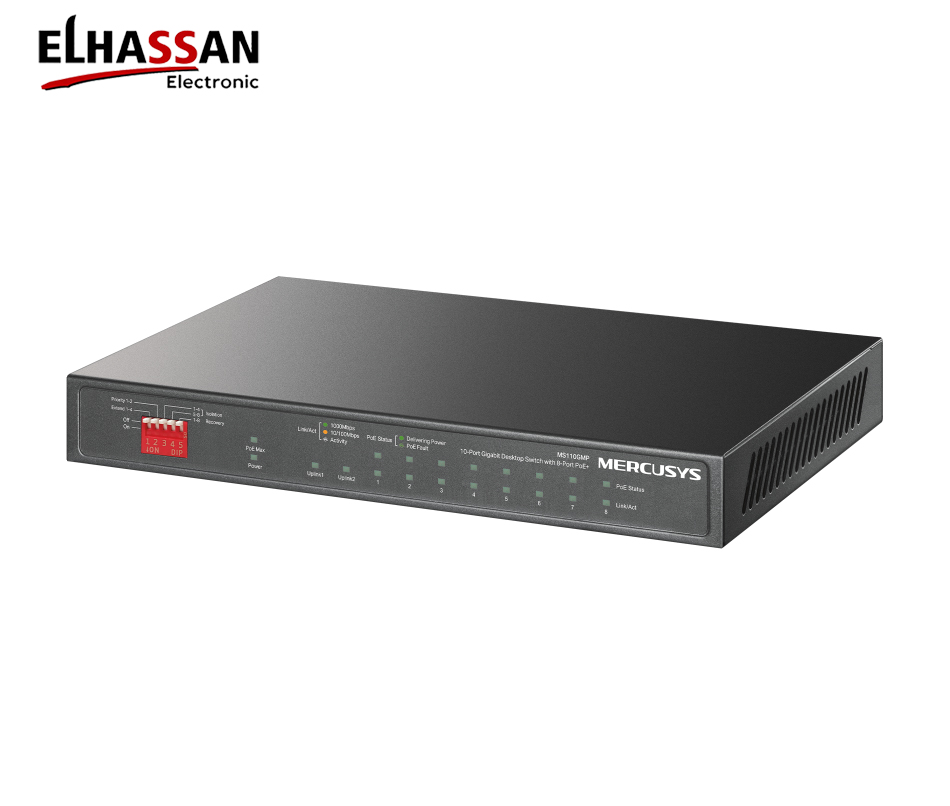

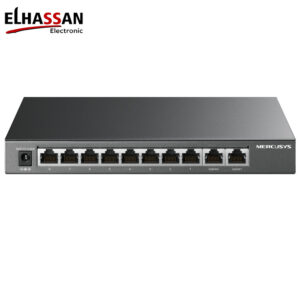

Mercusys MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+
Original price was: EGP3,000.00.EGP2,500.00Current price is: EGP2,500.00.
Brand: Mercusys Wishlist Please, enable Wishlist.Mercusys MS110GMP 10-Port Gigabit Desktop Network Switch with 8-Port PoE+ (111W)
The Mercusys MS110GMP provides a highly robust and professional high-speed routing solution for deploying your IP security camera networks and wireless access points. Moreover, its full Gigabit framework layout delivers high-bandwidth backbones to prevent data throttling across your linked network peripherals. This advanced unmanaged switch is an excellent choice for modern corporate offices, expansive retail warehouses, and integrated residential surveillance systems.

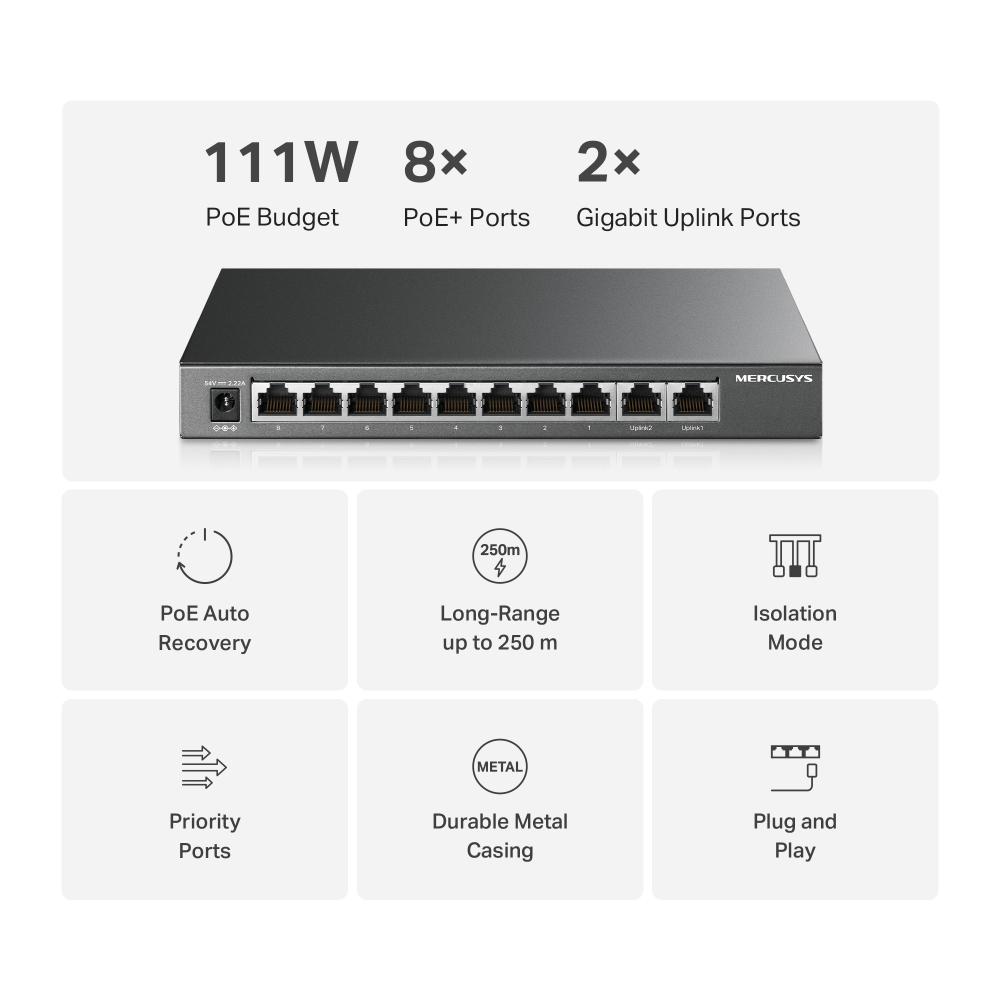

■ 111W High Power PoE+ Allocation & Ultra Long-Range Transmission

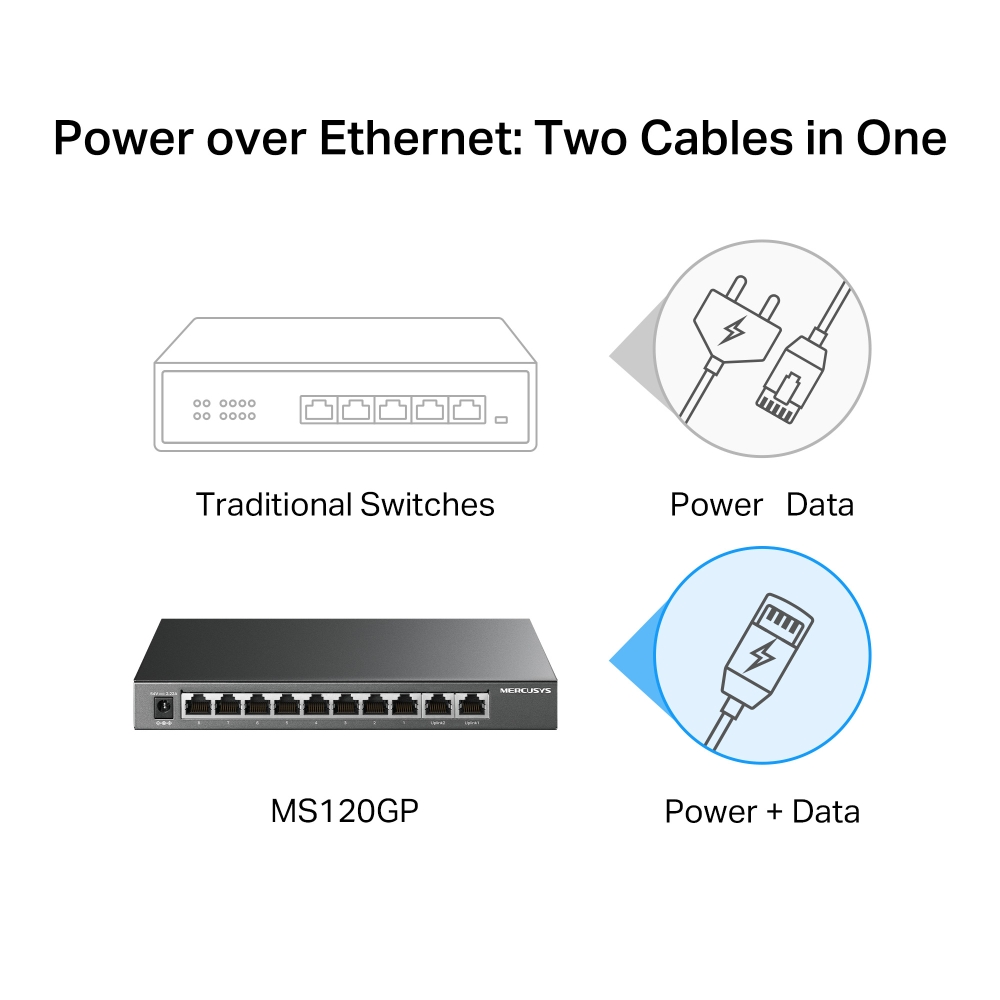

- 8 High-Power PoE+ Interfaces: Supplies up to 30W of electricity parameters on each dedicated PoE interface with a massive 111W total power budget capacity. Consequently, you can link multiple high-draw hardware components using single network runs safely.

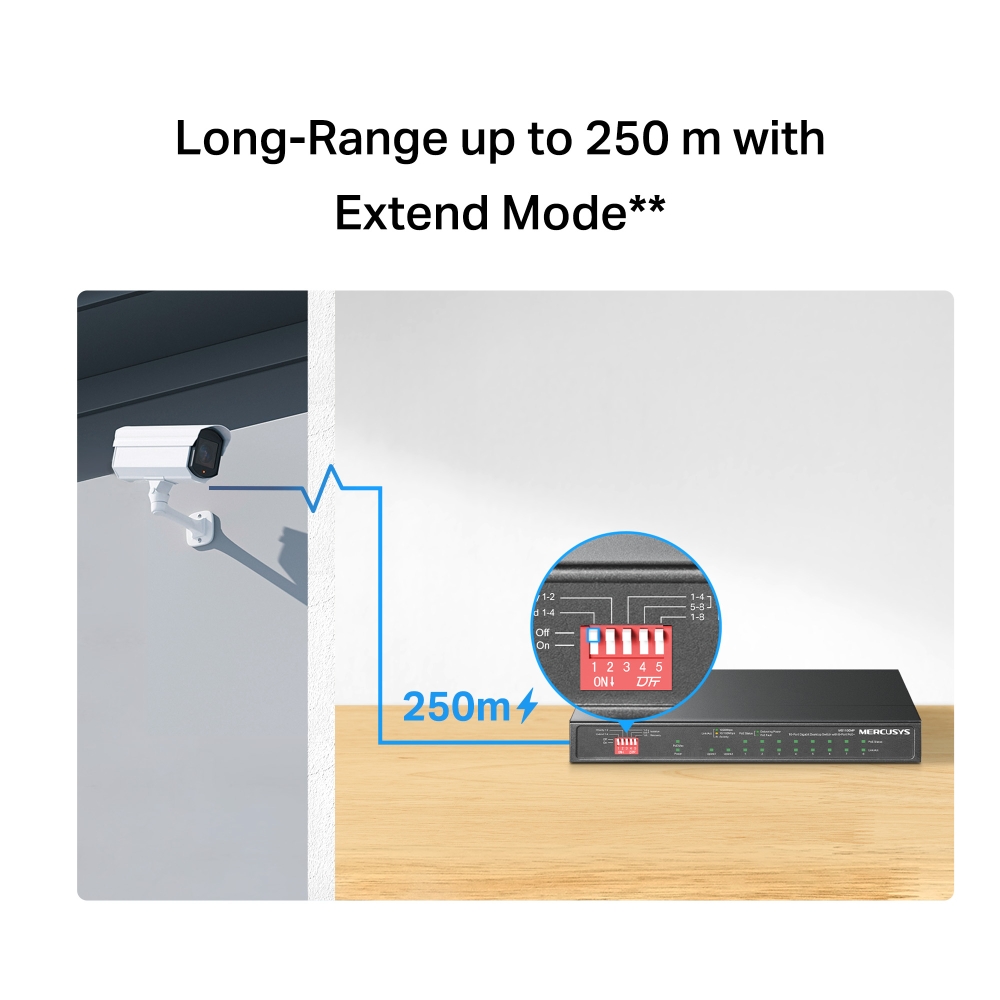

- 250m Long-Range Extend Mode: Integrates a physical hardware toggle switch to stretch your standard networking runs up to an extended 250 meters. Therefore, it completely cuts out the costly requirement of setting up midway power extenders.

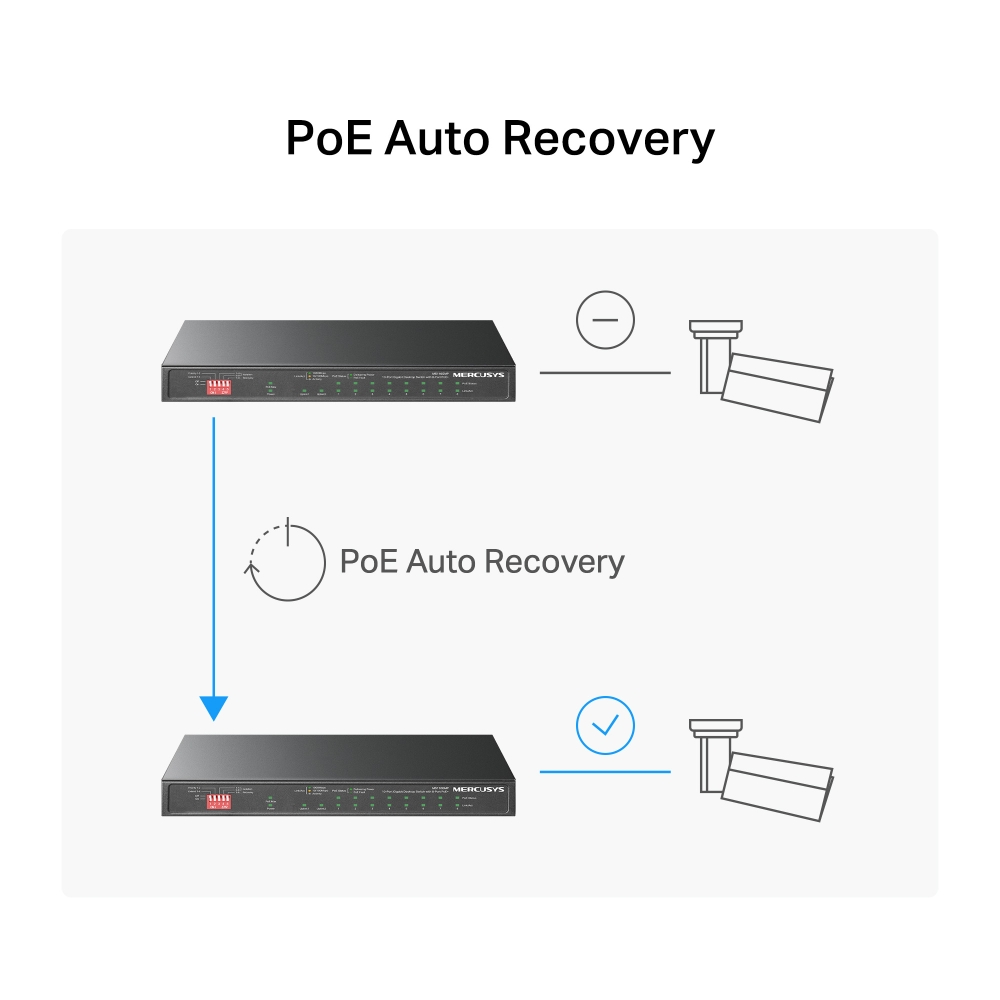

- Intelligent PoE Auto Recovery: Monitors the active operational status of all attached PoE-powered terminal devices around the clock. Furthermore, this smart system triggers an automated hardware reboot if any camera becomes frozen or unresponsive instantly.
■ Technical Specifications
| Category | Specification Details |
|---|---|
| Brand & Model | Mercusys MS110GMP (Sub-Brand of TP-Link) |
| Port Interface Layout | 8× 10/100/1000 Mbps PoE+ Ports | 2× 1000 Mbps RJ45 Uplink Ports |
| PoE Output Power | IEEE 802.3af/at Standards | Max 30W Per Port | 111W Shared Power Budget |
| Switching Capacity | 20 Gbps Switching Performance Engine | 14.88 Mpps Forwarding Rate |

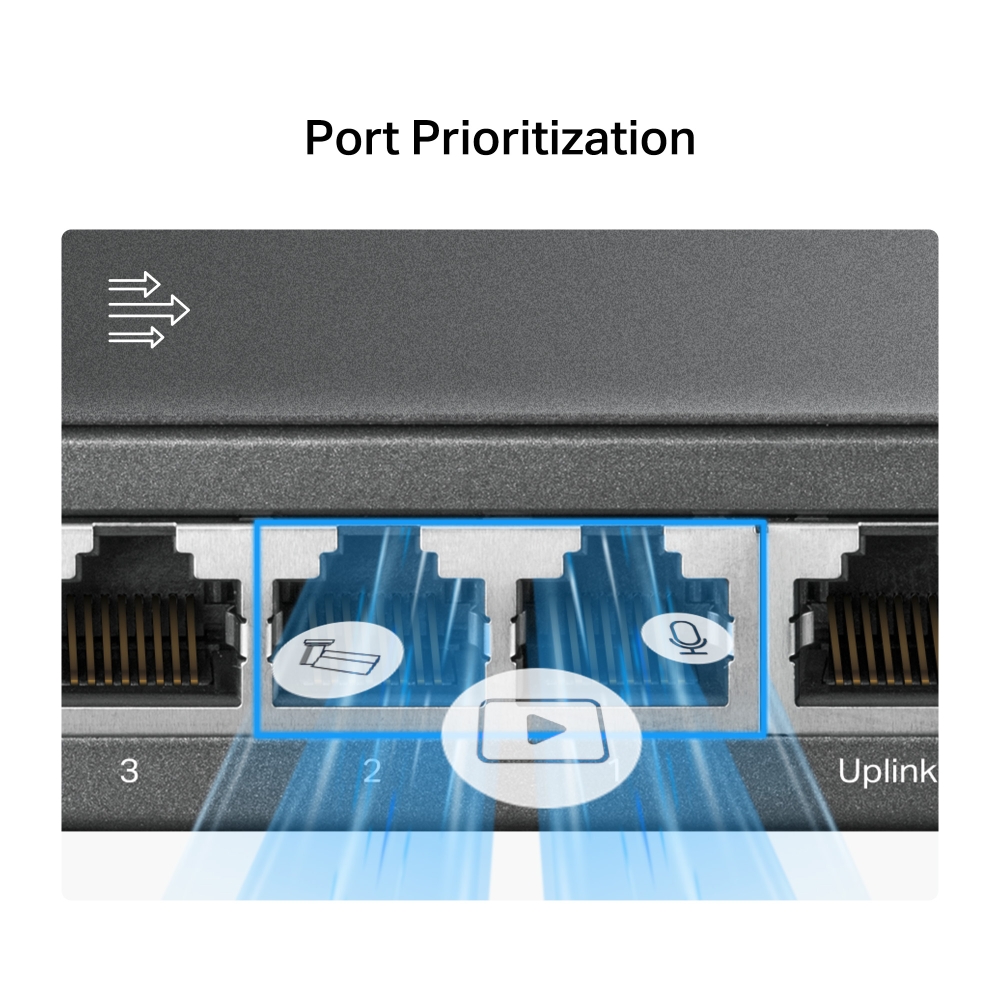

| Special Function Keys | Extend Mode (Up to 250m) | Priority Mode (Ports 1-2) | Isolation Mode |
| Cooling Architecture | Fanless Thermal Structure (Completely Silent Desk Deployment) |
| External Power Rating | External Power Adapter Output: 54VDC / 2.22A |
| Dimensions (W X D X H) | 8.2 × 4.9 × 1.0 in. (209 × 126 × 26 mm) |

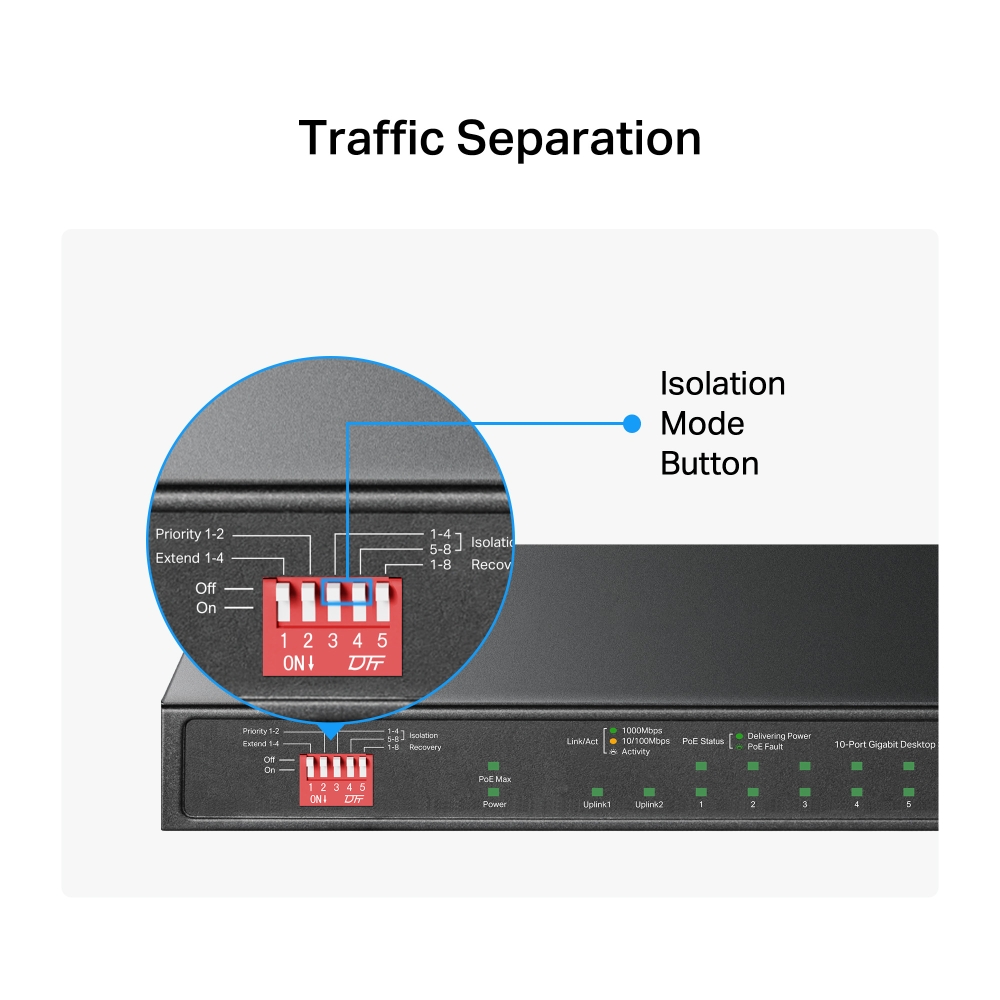

Expert Tip by EL Hassan Electronic: The MS110GMP is an exceptional core hardware asset for modern IP camera installations. Specifically, the mechanical “Isolation Mode” button lets you isolate traffic parameters on the camera ports with one click. Therefore, this stops malicious network loops, increases overall system security, and guarantees completely stutter-free video feeds on your NVR screens.
